Static and debris removal at the same time

Feedback system

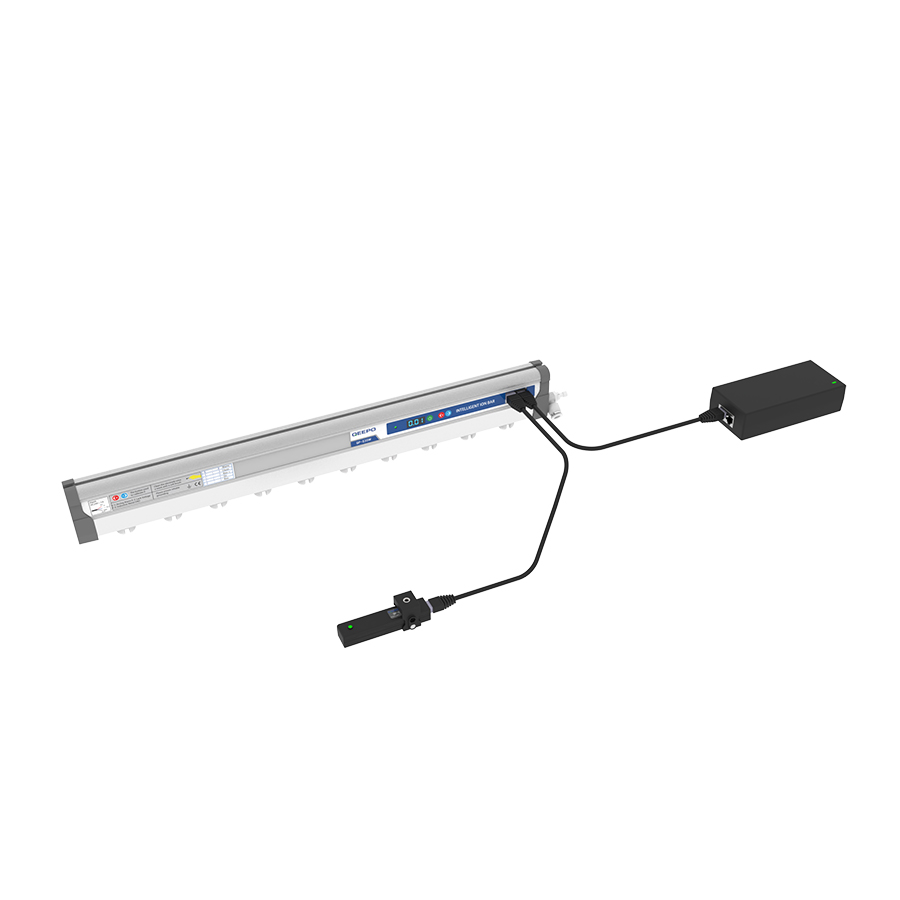

Feedback system ionizer

Input voltage: 20 to 36 VDC

Ion balancing: ±30 V

Discharge rate: 0.1s



Category

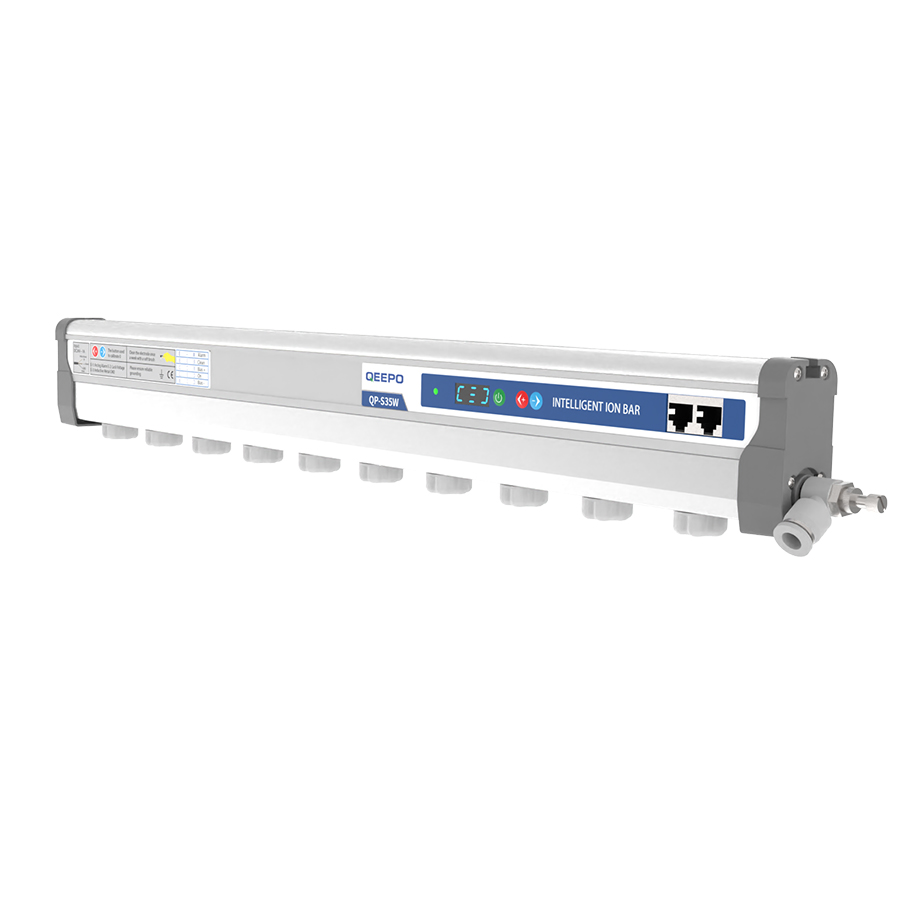

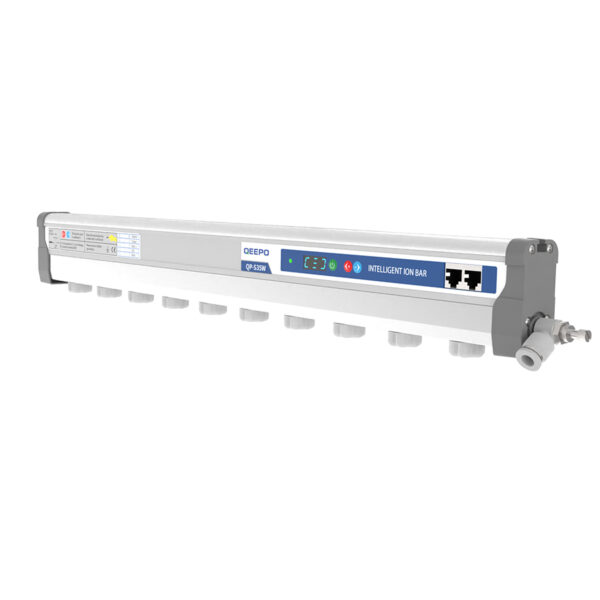

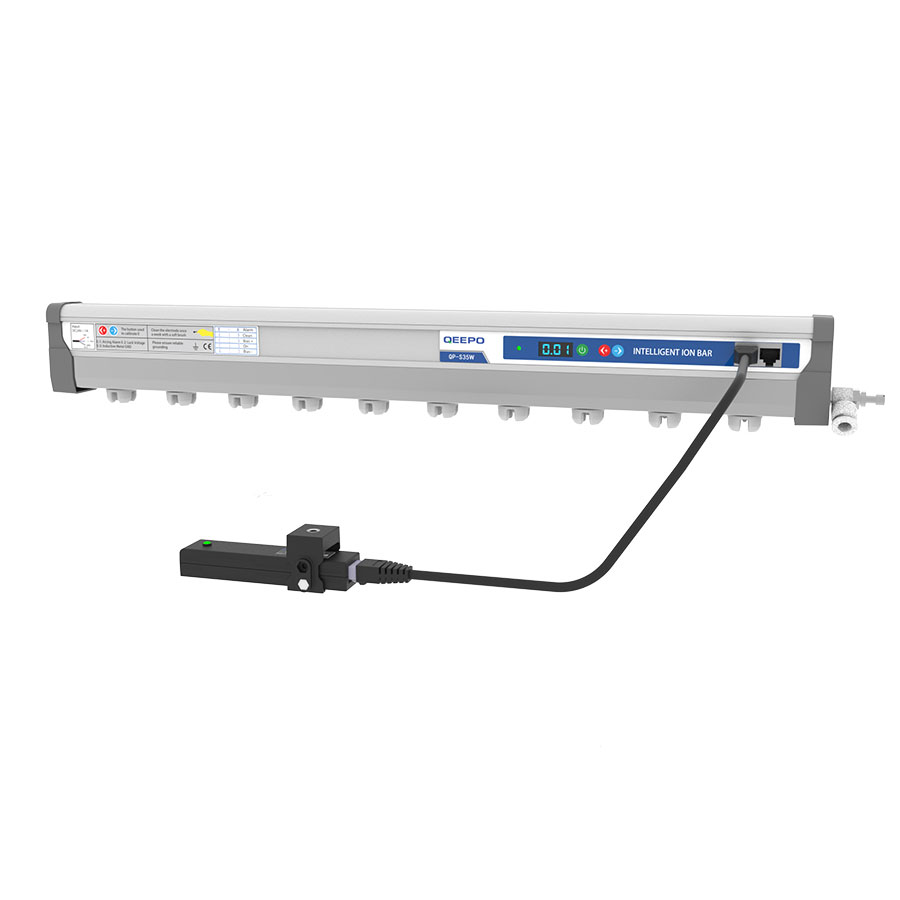

Intelligent static eliminator bar system with feedback static sensor

首页动画

How to intelligently eliminate static electricity?

Working Process of QP-S35 Intelligent Static Elimination System
QP-S35-宣传册(英文)-20211220_01



More performance features

1

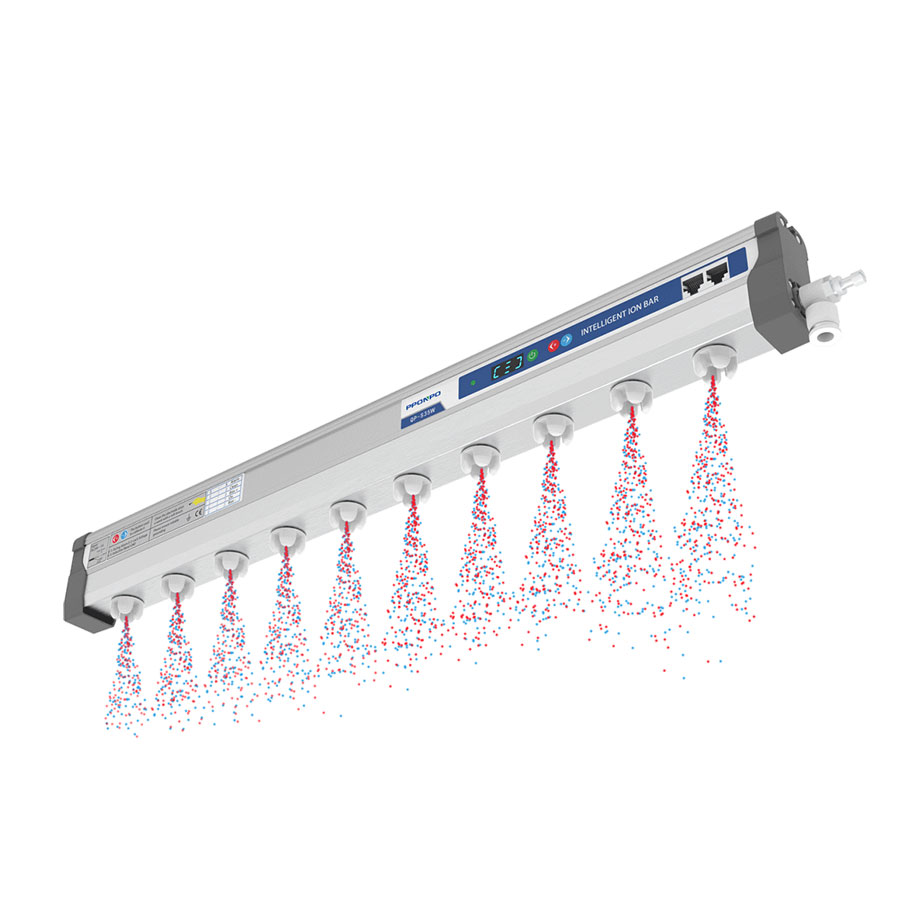

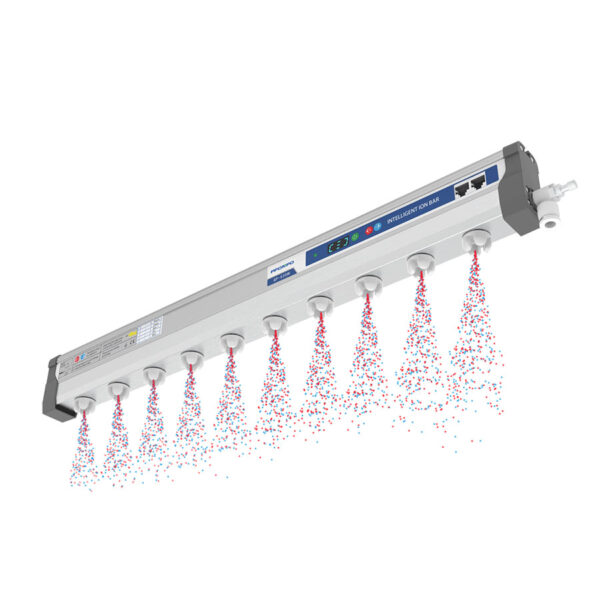

Ring discharge, 360° complete elimination of static electricity
Due to the internal air storage design of the air nozzle, the airflow is enhanced here and blows out quickly and smoothly
2

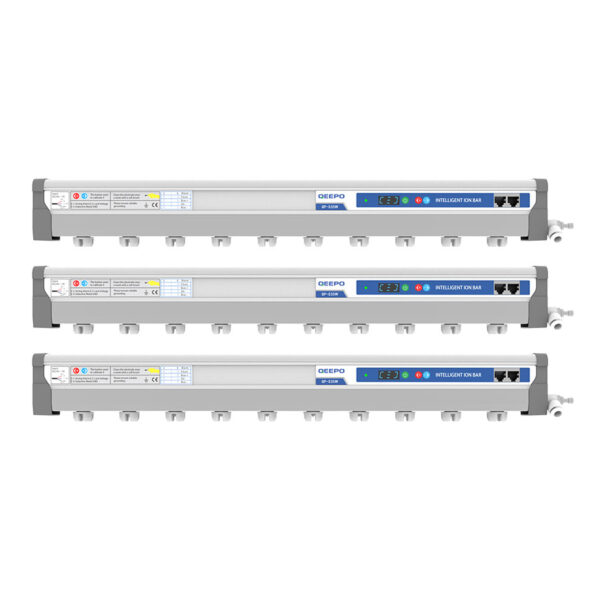

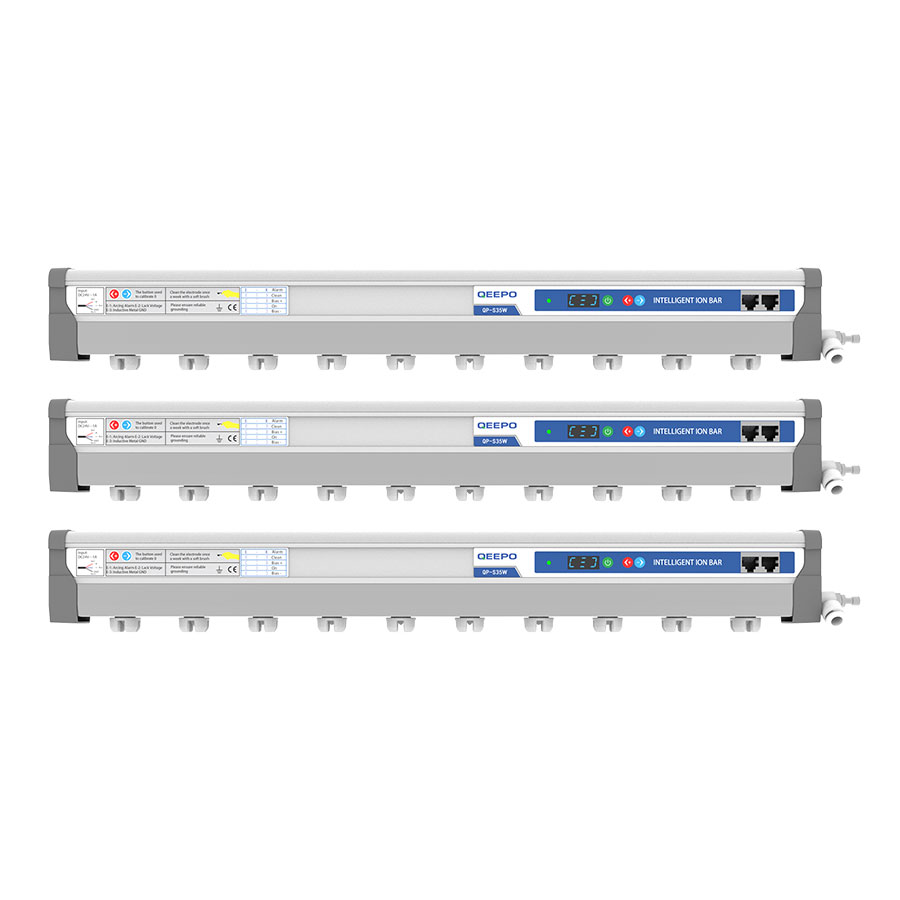

Unified suit design
The rear aluminum alloy T-shaped chute structure design can adapt to different installation environments.
3
The discharge electrode is replaceable.
The discharge electrode is rotatable for replacement and installation. Oxidation resistance, ozone resistance.
4
Detecting abnormal discharges
If an abnormal discharge is detected, the eliminator displays an error code and shuts off the high-voltage power supply to prevent problems.



Adapt to different needs

Adjust distance

Adjust the frequency through the key settings to meet different static elimination distances.
1

Adjusting the speed

A key setting allows you to adjust the ratio of positive and negative ion output to achieve fast static removal.
2



Intelligent self-balancing ion control

2

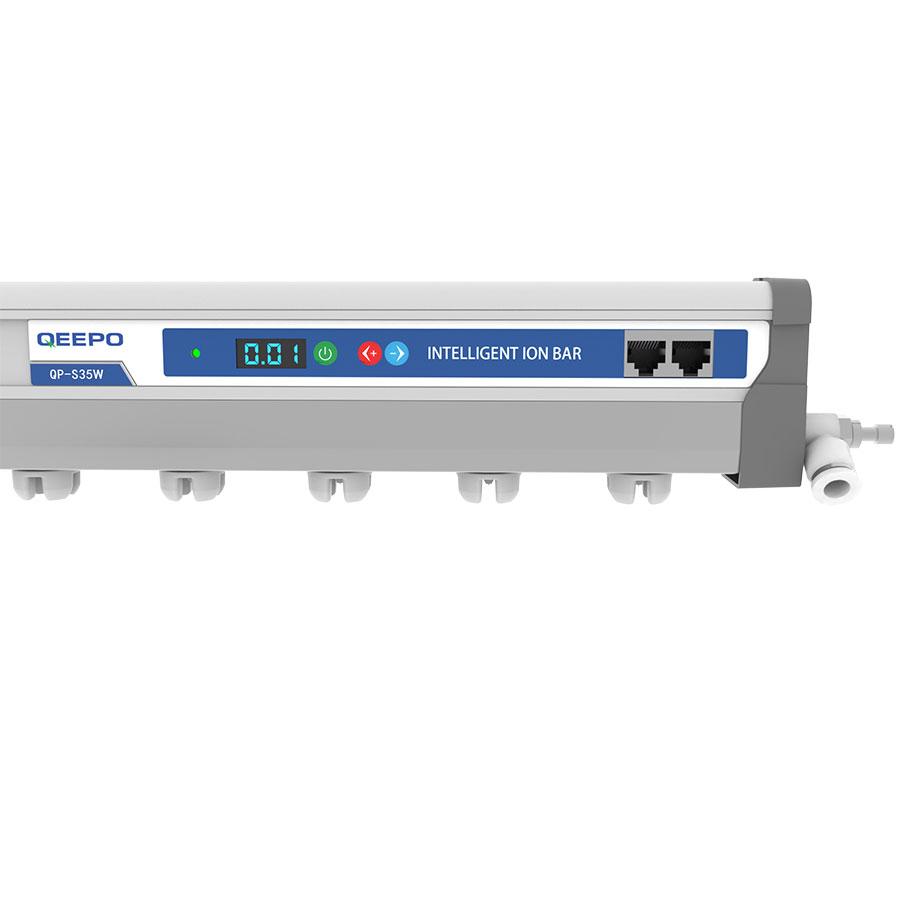

When the cations and anions are balanced during operation, the nixie tube state of the electrostatic rod is shown in the figure to the right. The needle tips emit equal amounts of cations and anions, and their positions are balanced.

1

If there are too many "cations" in operation, the condition is shown in the figure on the right. The needle tip emits a large number of negative ions to neutralize the positive ions, ensuring the stability of the ion level.

3

If there are too many "negative ions" in operation, the state is as shown in the figure on the right. The needle tip releases a large number of positive ions to neutralize the negative ions, ensuring the stability of the ionic level.



申请

1

Scope: Spraying production line
Countermeasure: Prevent foreign objects from being adsorbed

2

Scope: Powder Filling
Countermeasure: Prevent powder from blocking the outlet and causing the powder to harden.

3

Scope: Glass LCD products
Handling measures: Eliminate static electricity and prevent debris from adhering.

4

Scope: Spraying production line
Countermeasure: Prevent foreign objects from being adsorbed

5

Scope: Metal Wire Products
Winding countermeasures: Prevent metal wires from being wound in a disorderly fashion

6

Scope: Trademark nameplate type winding is
Countermeasure: Eliminate static and prevent bad colds

7

Scope: Parts conveyor belt
Remedy: Prevent the parts feeder from clogging

8

Scope: Product is a carton
Before bonding to the countermeasure: Remove any debris and prevent uneven bonding.

9

Scope: Bottle labeling
Countermeasure: Eliminate static electricity and prevent debris from attaching.



Performance parameters

QP-S35-technical-parameter
Feedback system
